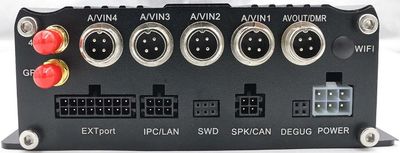

4G ADAS DMS 4CH MDVR

LCD03 is a new generation of video surveillance products integrating video and positioning, active safety alarms. It has rich functions and strong expansibility, adopts a high-speed processor and embedded operating system, combined with H.265 video compression, satellite positioning, CAN, RS232/RS485 serial port, 3G/4G network, unique SIM&SD card locks, etc.

Real-time location monitoring: Periodically reports location information such as longitude,

latitude, and speed based on the preset return interval.

Support 4 channels of AHD720P video real-time storage and upload.

Support 1 channel CVBS video output, external AV display for real-time video live broadcast.

Support remote two-way communication initiated by the monitoring platform.

Support 2PCS of 256GB SD card cyclic storage.

Multiple expansion interfaces, support to connect to fuel sensor, advertising screen, broadcast

station, etc.

Support ADAS, DMS, BSD

       A. ADAS: give voice warning for dangerous driving behaviors such as lane departure, close proximity and collision, and upload it to the platform for evidence collection

      B. DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection

      C. BSD: real-time detection the objects of people around the blind spot of the vehicle
